DTV Signal Monitoring

The Signal Monitoring Solution allows customers to monitor the signal quality of DVB-C,DVB-S,DVB-S2, FM, ASI, and can be controlled by NMS in the Main Monitoring Center.

Classification：

Signal Monitoring System

appendix：

System Introduction

The Signal Monitoring Solution allows customers to monitor the signal quality of DVB-C, DVB-S, DVB-S2, FM, ASI, and can be controlled by NMS in the Main Monitoring Center.

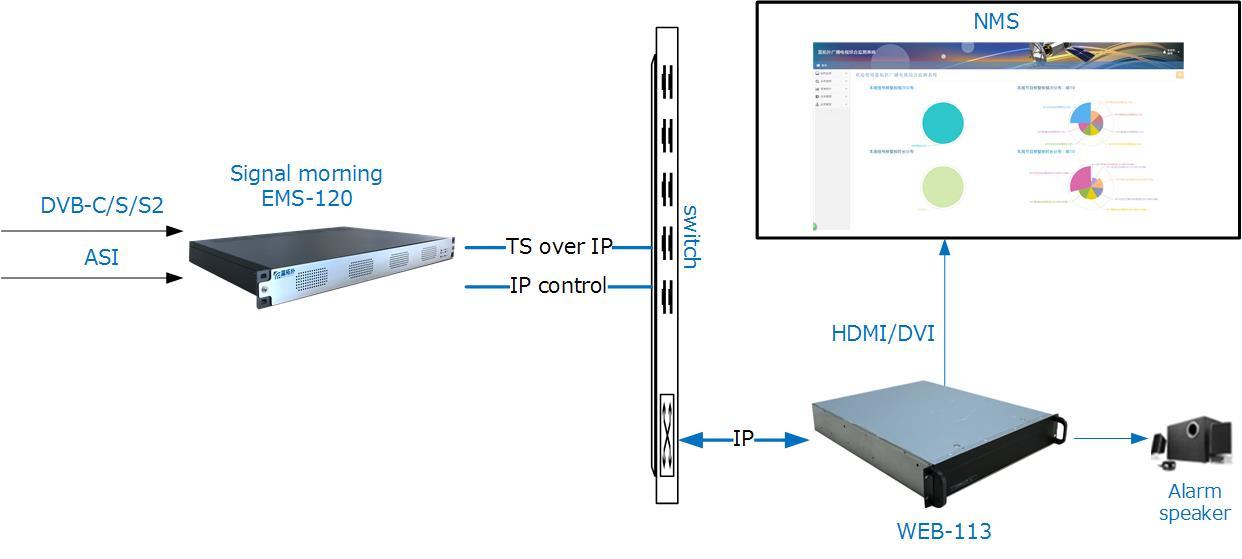

Consisting of the Signal monitoring System(EMS-120) and the NMS(WEB-113), this solution provides a more stable and flexible monitoring system for your broadcasting. It can be used for Cable、Satellite Head Ends and TV/FM Broadcasting transmitting

stations, also supports remote monitoring , aggregates the signals from different locations.

NMS monitoring platform provides detailed monitoring results, analysis and storages of real-time data, support visual display and centralized alarm through interface, and realize the configuration and management functions of the whole system.

EMS-120 is a embedded system, support up to 8 signals in 1RU frame, aggregates demodulation, descrambling, RF channel quality measurement, TR 101 290 monitoring, TS over IP output.

Key features& benefits

WEB-113

•Based on B/S architecture. The client manages and configs through webpage. It is simple and convenient.

•Integrated configuration function, include signal configuration, equipment management, program management, code stream recording, alarm threshold, program running map configuration and so on.

•Comprehensive data analysis, query, report generation.

•Support multiuser / multi terminal by permissions.

•Provides signal panorama, alarm information and real-time broadcast information of selected programs.

•Integrated MPEG2 Transport Stream Analyzer , provides professional analysis results.

EMS-120

•2 slots, support total 8 inputs , support 8 types of monitoring modules

•Support ASI, DVB-C, DVB-S/S2, ABS-S, DTMB, ATV, FM, signal

•Support demodulation, descrambling, compression transcoding, RF channel quality measurement, TR 101 290 monitoring
